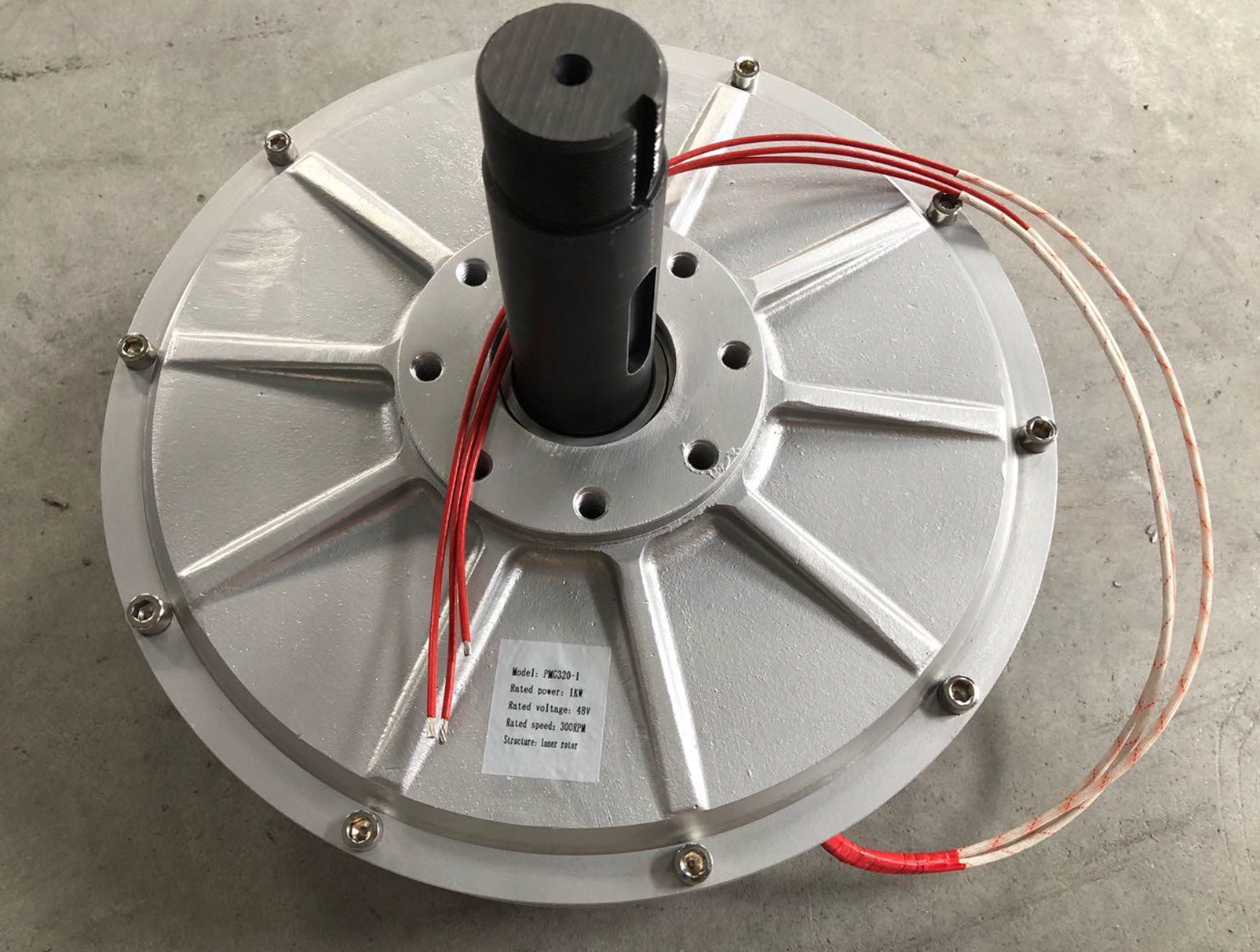

Disc Coreless Permanent Magnet Generator (PMG320-2KW)

Our disc coreless PMG has advantages such as low rated speed, low starting wind speed, compact size, lightweight design, and high efficiency. With coreless, anhysteresis, slotless construction and brushless operation, it delivers high performance for vertical axis wind turbines, gasoline generators, and hydroelectric generators.

2. Characteristics

• Coreless, anhysteresis, and slotless construction — provides very low starting torque.
• No iron loss — ensures high efficiency and low heat generation.
• Unique coreless precision winding technology — precision coil design for maximum output.
• Rare earth permanent magnets — multipole, mean gap, high power density, and high output power.
• Low-speed direct drive — smooth operation with no torque fluctuations.
• Compact structure — high ratio of power to volume.
• No iron loss — low calorific value and small temperature rise.
• Simple structure — easy installation.
• Brushless design — maintenance-free operation.

3. Range of Application

• Vertical axis wind turbines
• Gasoline generators
• Hydroelectric generators

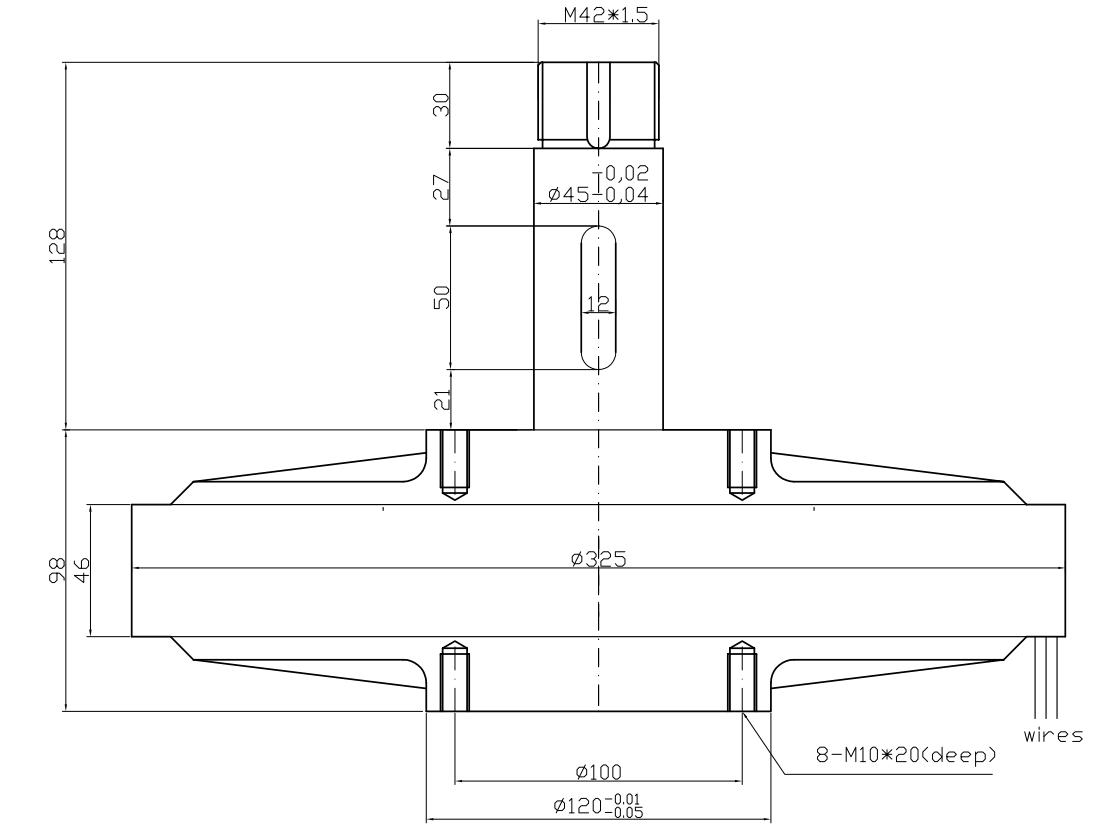

4. Shape Drawing

Technical Specifications

Model	PMG320-2KW
Rated Power	2 KW
Rated Speed	500 RPM
Rated Voltage	120 VAC
Rated Current	16 A
Rated Torque	38 N/M
Efficiency	>95%
Resistance (Line-Line)	-
Winding Type	Y
Insulation Resistance	100 MΩ min (500V DC)
Leakage Level	<5 mA
Start Torque	<0.3 N/M
Phase	Three phase
Structure	Inner Rotor
Stator	Coreless
Rotor	Permanent Magnet Type
Generator Diameter	325 mm
Generator Length	226 mm
Generator Weight	20 kg
Shaft Diameter	45 mm
Housing Material	Aluminum Alloy
Shaft Material	Steel

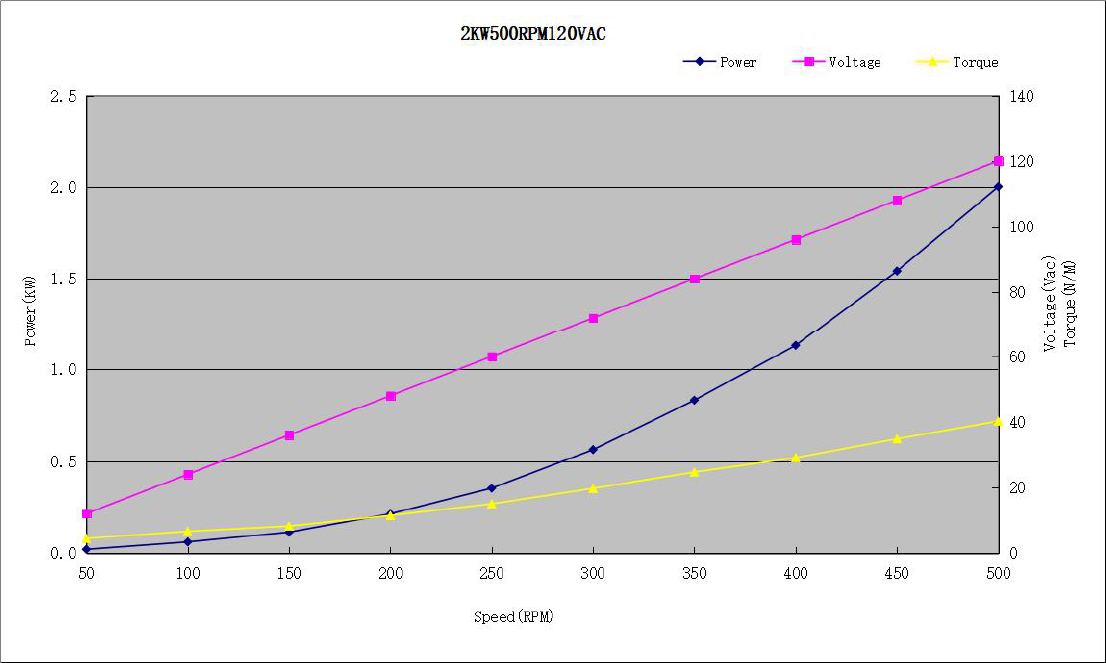

Curve Graph
