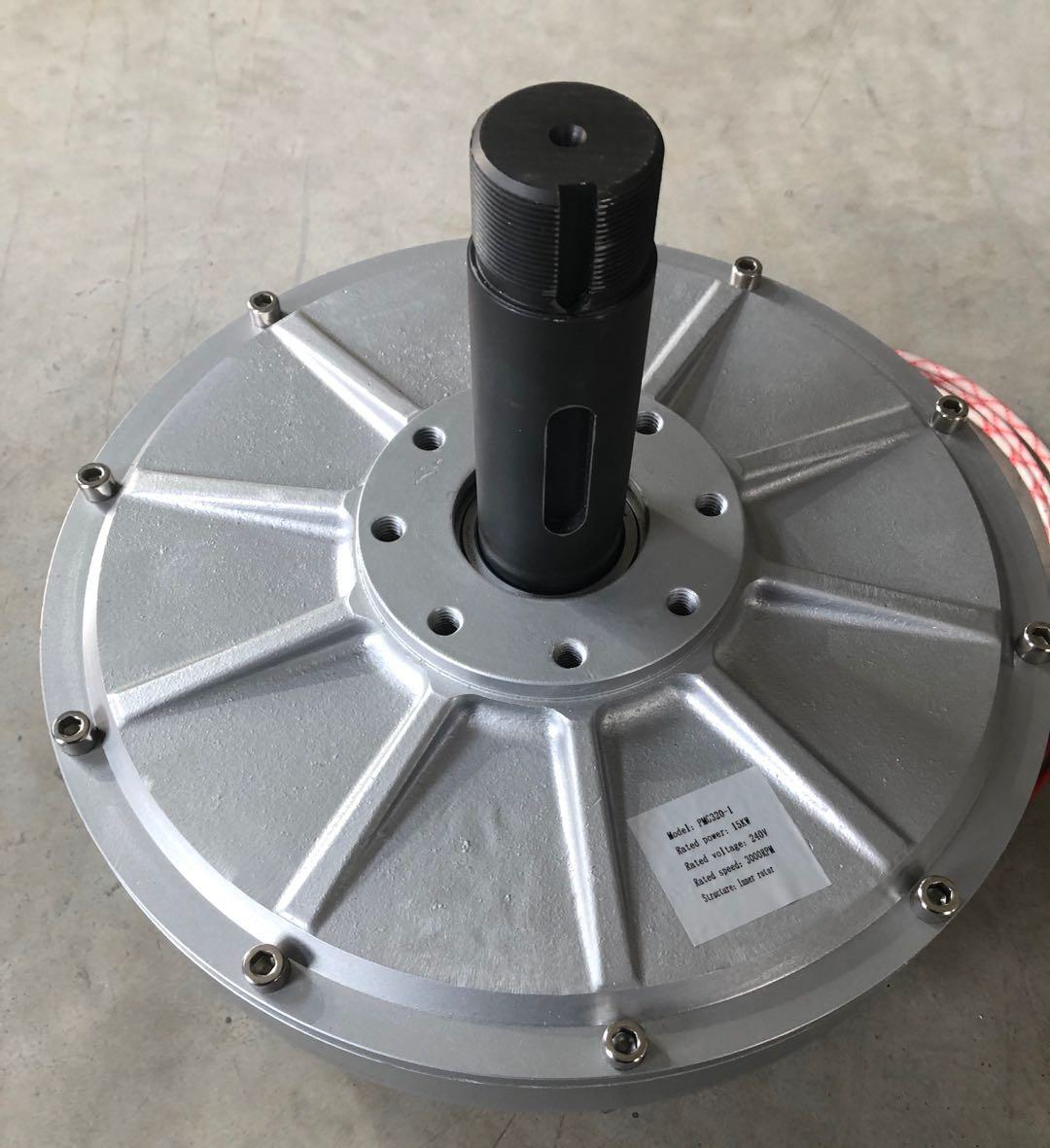

Disc Coreless Permanent Magnet Generator (PMG320-3KW)

Our disc coreless PMG has advantages such as low rated speed, low starting wind speed, small volume, lightweight design, compact structure, and high efficiency. With coreless, anhysteresis, slotless construction and brushless operation, it delivers reliable performance for wind, gasoline, and hydro generators.

2. Characteristics

• Coreless, anhysteresis, slotless — very low starting torque.
• No iron loss — ensures high efficiency.
• Unique coreless precision winding technology — precision coil design.
• Rare earth permanent magnets — multipole, mean gap, high power density and high output power.
• Low-speed direct drive — no torque fluctuations.
• Compact structure — high ratio of power to volume.
• No iron loss — low calorific value and small temperature rise.
• Simple structure — easy to install.
• Brushless structure — maintenance-free.
• —

3. Range of Application

• Vertical axis wind turbines
• Gasoline generators
• Hydroelectric generators

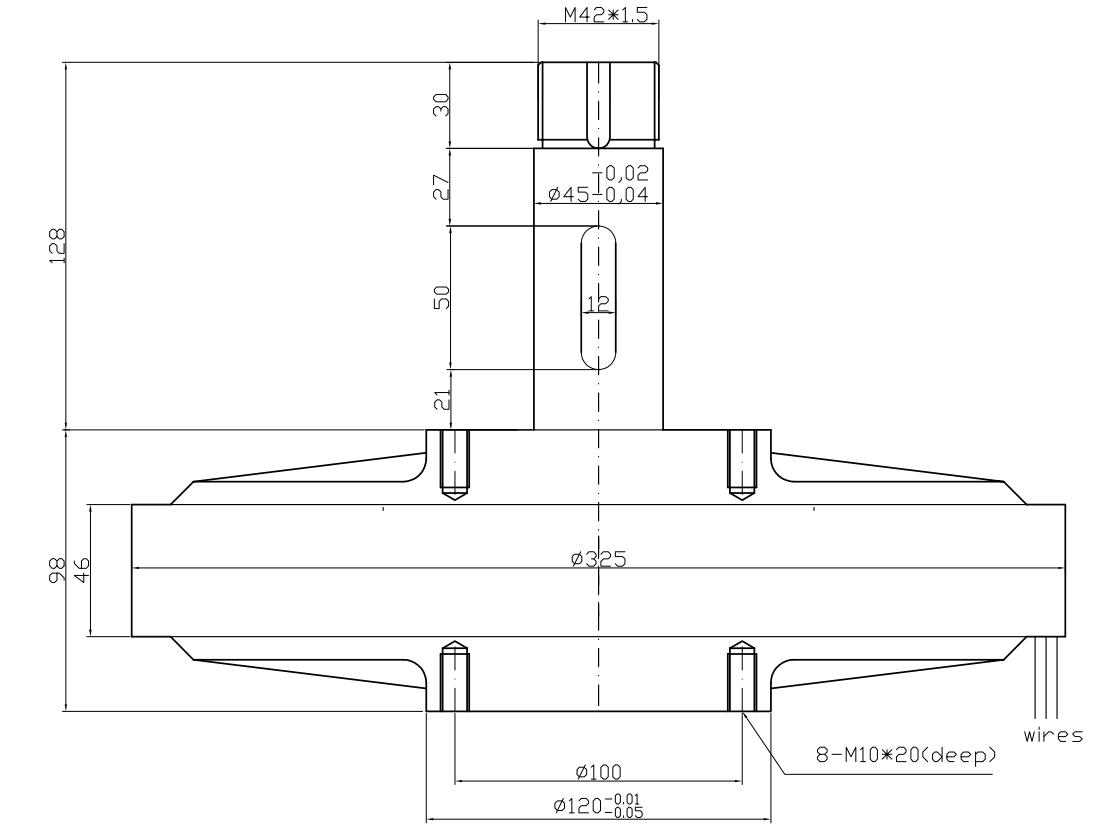

4. Shape Drawing

Technical Specifications

Model	PMG320-3KW
Rated Power	3 KW
Rated Speed	700 RPM
Rated Voltage	380VAC
Rated Current	7 A
Efficiency	>90%
Resistance (Line-Line)	-
Winding Type	Y
Insulation Resistance	100 MΩ min (500V DC)
Leakage Level	<5 mA
Start Torque	<0.3 N/M
Rated Torque	40.7 N/M
Phase	Three phase
Structure	Outer Rotor
Stator	Coreless
Rotor	Permanent magnet type (Outer Rotor)
Generator Diameter	325 mm
Generator Length	232 mm
Weight	20 kg
Shaft Diameter	45 mm
Housing Material	Aluminum Alloy
Shaft Material	Steel

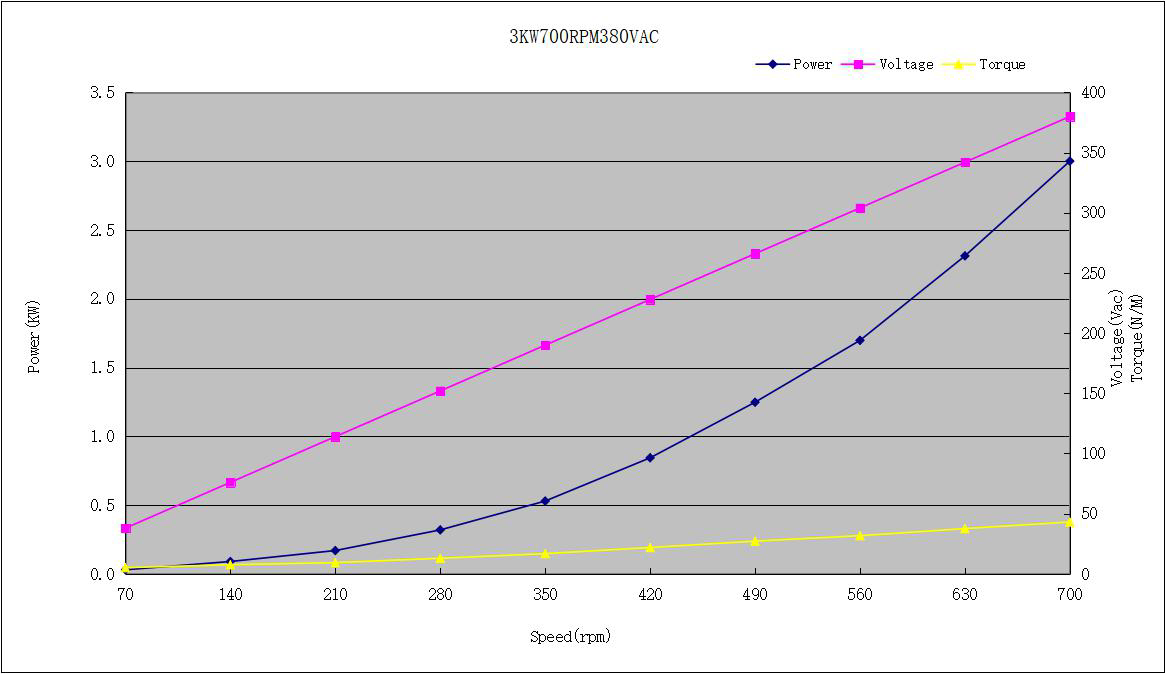

Curve Graph
